LARGE CUSTOM SILICONE MOLDS
Large Custom Silicone Molds & Platinum Mold Making Silicone
From 3D master patterns to large custom silicone molds and factory-direct platinum silicone solutions.
- One supplier: master pattern, mold and silicone
- Maximum silicone mold size: 450 × 450 × 350 mm (17.7 × 17.7 × 13.8 in)
- Master Model → Silicone Mold → Casting Test
From Raw Silicone to Finished Mold — One Supplier
We supply the silicone, print the master pattern, build the mold, and match the color. No coordinating between vendors, no gaps in responsibility.
- 01
Platinum Silicone Rubber
Silicone hardness: Shore A 5–20. Mixed A+B viscosity: 3500±500 mPa·s at 23°C (73°F).
View Materials - 02
3D Printed Master Patterns
SLA printing with a minimum layer height of 0.05 mm (0.002 in), helping reduce visible layer lines compared with coarser layers. Maximum printing dimensions: 550 × 550 × 350 mm (21.7 × 21.7 × 13.8 in). Master patterns prepared for silicone mold making.
See Master Patterns - 03
Custom Silicone Molds
OEM/ODM from sketch or STL. Maximum silicone mold size: 450 × 450 × 350 mm (17.7 × 17.7 × 13.8 in).
Start a Custom Project - 04
AI Color Matching
Match a Pantone code, photo or physical sample. 1,700+ custom silicone pigment color formulas saved in our color-matching system. Approx. 2 working hours, 100 g (3.5 oz) minimum.
Match a Color
These are our own formulas, not official Pantone formulas.
REAL PROJECTS · FROM OUR WORKSHOP
See what we make. See how it works.
Custom soap molds, jelly wax candles and large plaster sculptures. Explore the actual molds, workshop steps and finished castings behind each project.
15 cavities. One custom soap mold.
Mold: 310 × 310 × 33 mm (12.2 × 12.2 × 1.3 in) · Soap: 90 × 50 × 26 mm (3.5 × 2 × 1 in)
A customer needed 15 soap bars per mold. We poured the silicone in two stages, 30 minutes apart, to reduce the initial filling pressure and the risk of leakage from the assembled mold housing.
See the two-stage pourCrystal detail in jelly wax.
Mold: 81 × 81 × 60 mm (3.2 × 3.2 × 2.4 in) · Candle: 64 × 64 × 55 mm (2.5 × 2.5 × 2.2 in)
For this crystal-cluster project, we used Shore A 15 silicone. The workshop mold and the customer’s finished jelly wax candles show the project from mold making to the final cast shape.

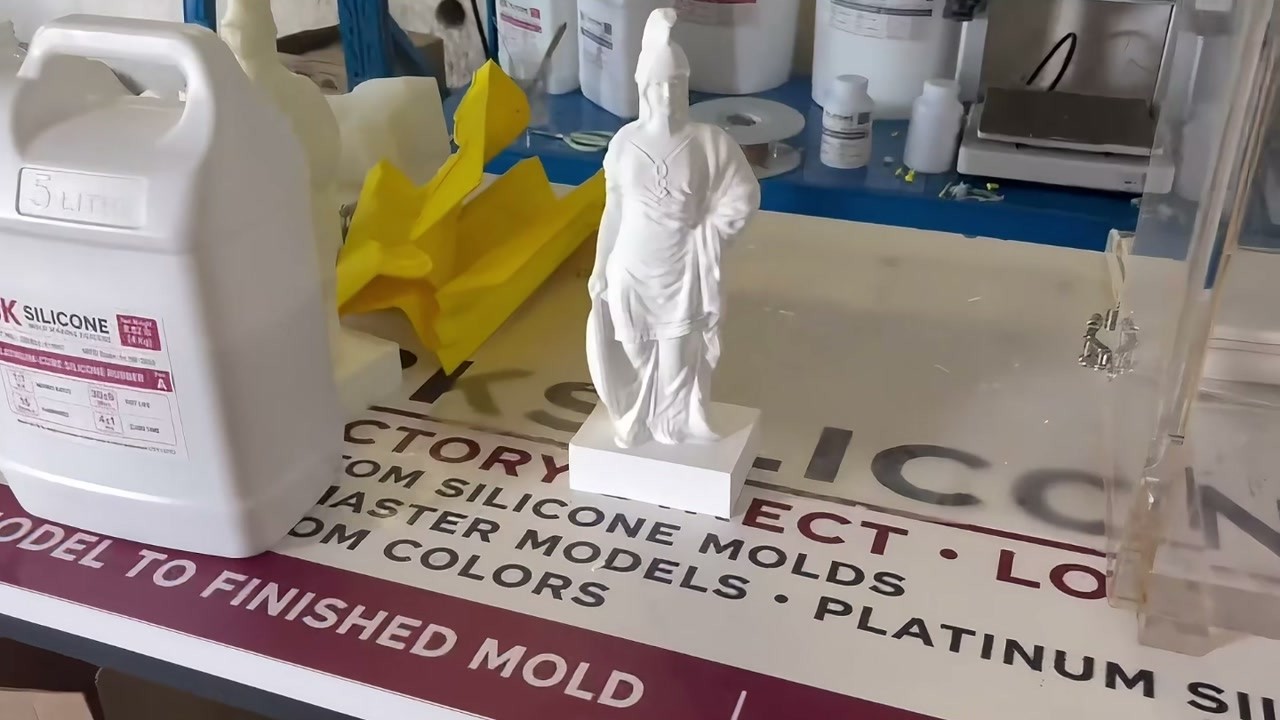

Explore the crystal candle projectFrom Athena master to plaster cast.
Finished casting: 30 cm (11.8 in) high · Plaster casting test
This 30 cm (11.8 in) Athena project follows the workshop sequence: prepare the printed master, pour the silicone in two stages, demold and trim, then test the mold with plaster.
Follow the Athena mold-making processA flexible mold. A supporting shell.
Plaster casting: H 30 × W 20.3 × D 19.7 cm (7.8 in)
The Lady Justice mold pairs a flexible silicone liner with a rigid outer shell. The shell supports the liner during plaster pouring; it opens for access so the silicone can be peeled away from the casting.
See how the support shell worksCustom Color Matching for Platinum Silicone
Send us a Pantone color reference, product photo, or physical color sample. We can prepare matched silicone pigment paste and ship it together with BK-A05 or BK-A15 platinum-cure silicone.
Inside our color matching process
Real equipment. Real color samples.
Photographs show individual color trials, not a continuous batch. Screen colors are for reference only.
POPULAR APPLICATIONS
Silicone Candle Molds
Flexible molds for decorative, scented, and handmade candle making.
Shop Candle Molds
Silicone Fondant & Chocolate
Mold options for fondant, chocolate, and dessert decoration.
Shop Fondant & Chocolate Molds
Silicone Concrete & Plaster
Durable molds for concrete, gypsum, and plaster craft casting.
Shop Concrete & Plaster Molds

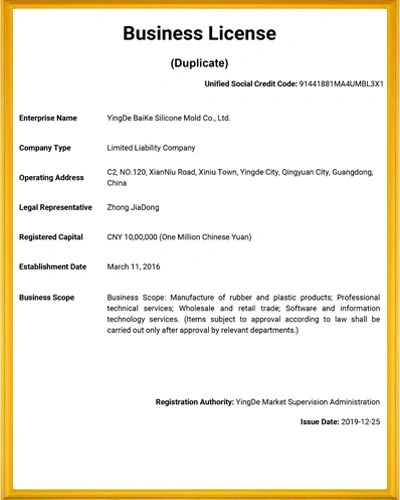

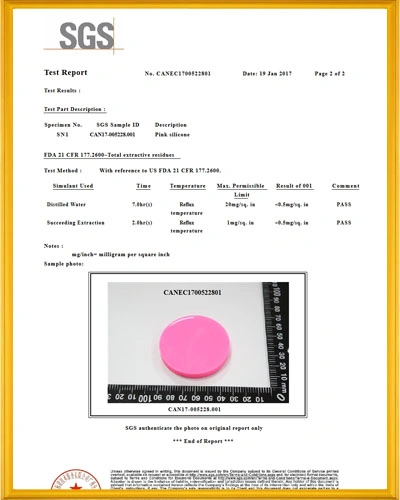

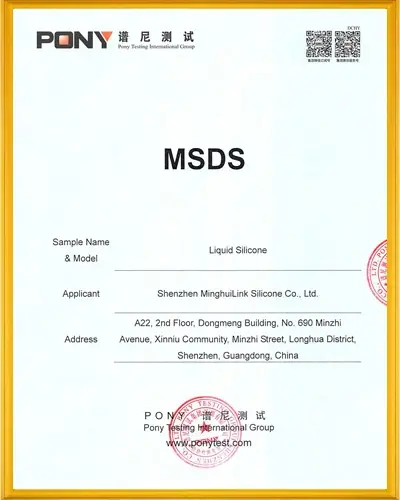

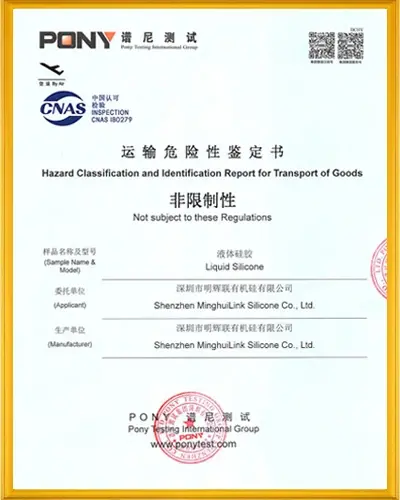

CERTIFICATES & DOCUMENTS
